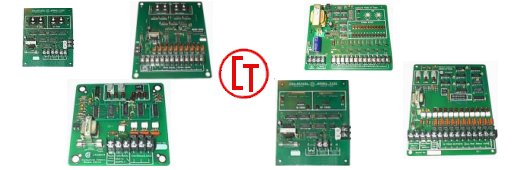

Dust-Collector Controls
|
| Model
22CX3 |
- Three (3) output Timer
- Continuous or On Demand sequencing
- Remote Start/Stop from AC line, PLC, DP switch, relay, etc.
- Adjustable ON Time and OFF Time
- Opto-Isolated triac outputs
- Channel bypass switching
- Sequence and Channel selection LED indication
- Transformer isolated logic
- Line transient suppression
- Maintenance free operation
|
| Model
22CX10AC
|
- Ten (10) output timer
- Continuous or On Demand sequencing
- Remote Start/Stop Inputs from AC line, PLC, DP switch, relay, etc.
- One adjustable ON Time
- Two adjustable and selectable OFF Times:
1) Input S1 enables OFF Time1
2) Input S2 enables OFF Time 2
Programmable switch SB sets various sequencing functions
Opto-Isolated triac outputs
Channel bypass switching
Sequence and Channel selection LED indication
AC Timer has transformer isolated logic
AC Timer has line transient suppression
Maintenance free operation
|
| Model 22CX10DC |
- Ten (10) output timer
- Continuous or On Demand sequencing
- Remote Start/Stop Inputs from AC line, PLC, DP switch, relay, etc.
- One adjustable ON Time
- Two adjustable and selectable OFF Times:
1) Input S1 enables OFF Time1
2) Input S2 enables OFF Time 2
Programmable switch SB sets various sequencing functions
Opto-Isolated triac outputs
Channel bypass switching
Sequence and Channel selection LED indication
AC Timer has transformer isolated logic
AC Timer has line transient suppression
Maintenance free operation
|
| Model 22 Timer |
- Ten (10) output timer (optional 5 outputs available)
- Continuous or On Demand sequencing
- Adjustable ON Time and OFF Time
- Triac outputs
- Channel bypass switching
- Channel selected LED indication
- Transformer isolated logic
- Line transient suppression
- Maintenance free operation
|
| Model 22M
|
- Ten (10) output timer (optional 5 outputs available)
- Multiple Sequence, to provide 20, 30, 40 etc. outputs
- Continuous or On Demand sequencing
- Remote Start/Stop from AC line, PLC, DP switch, relay, etc.
- Adjustable ON Time and OFF Time
- Triac outputs
- Channel bypass switching
- Channel selected LED indication
- Transformer isolated logic
- Line transient suppression
- Maintenance free operation
|
|
Model 24
|
- Twelve (12) output timer
- Adjustable ON Time and OFF Time
- Channel bypass switching
- Channel selected LED indication
- 120 VAC input with DC outputs, to operate 24VDC solenoids
- Over-current protection on output power circuits, with alarm
output
- Transformer isolated logic
- Line transient suppression
- Maintenance free operation
|
Model CT33
|
- One (1) output timer
- Digitally set ON and OFF timing periods
- Isolated triac output
- Transformer isolated logic
- Line transient suppression
- Provision for remote OFF time override
- Maintenance free operation
|
